The Future of Sustainable Spray Booth Technology
As industries across Australia continue to focus on reducing operating costs, improving efficiency, and embracing more sustainable practices, the demand for innovative spray booth technology has never been greater.

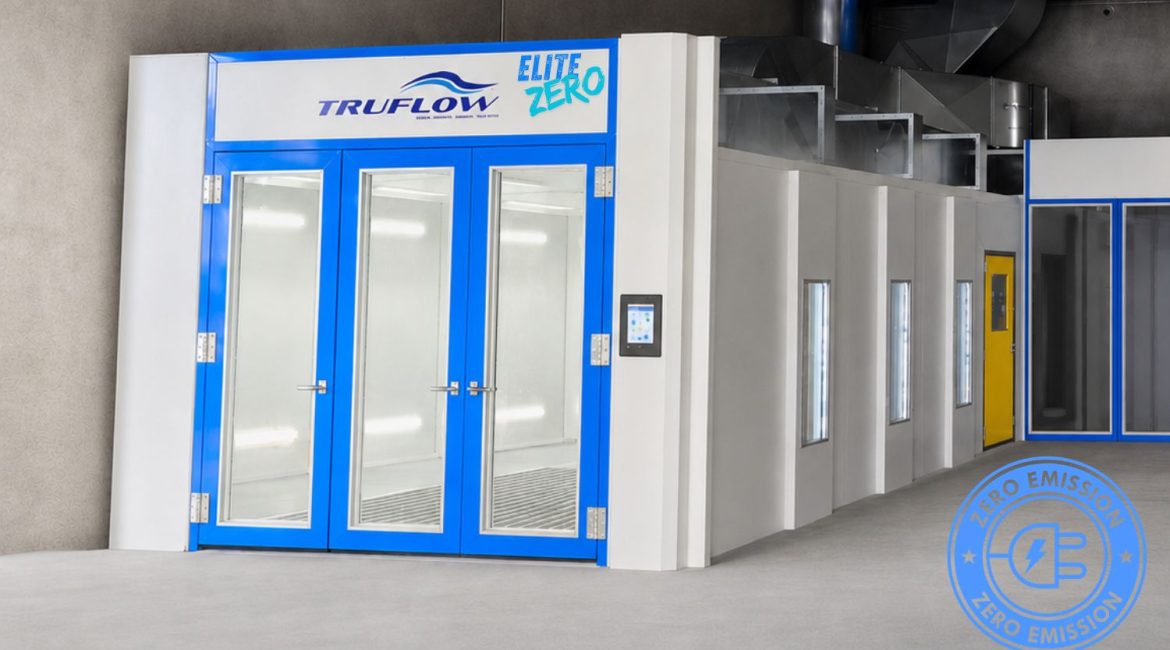

Truflow is proud to introduce the Elite Zero, a fully electric full downdraft spray booth designed to deliver premium finishing performance while eliminating the need for a traditional gas-fired burner system.
Engineered for businesses that want to future-proof their operations, the Elite Zero combines advanced electric heating technology, intelligent airflow management, and energy recovery systems to provide exceptional performance with zero direct emissions.
A New Generation of Electric Spray Booth Technology
The Truflow Elite Zero represents a significant step forward in spray booth design. Unlike conventional systems that rely on fossil fuels, the Elite Zero achieves bake temperatures of up to 70°C using an innovative combination of:
- Multi-stage electric heating elements
- Intelligent airflow management
- Energy recovery technology
- Advanced temperature control systems
The result is a highly efficient spray booth that delivers the curing performance and finish quality businesses expect while supporting a more sustainable future.
Innovative Heating for Consistent Performance
At the core of the Elite Zero is a sophisticated pre-heat and post-heat system designed to maximise efficiency without compromising performance.
Ambient air is pre-heated before entering the Air Handling Unit (AHU), reducing the energy required to reach operating temperatures. A dedicated post-heating system then maintains precise temperature control throughout the bake and recirculation cycles, ensuring consistent curing conditions and outstanding finish quality.
This intelligent approach allows the Elite Zero to optimise energy usage while maintaining premium refinishing performance.
Advanced Energy Recovery Systems
Efficiency is further enhanced through the incorporation of a heat recovery exchanger.
The system captures heat from exhaust air and transfers it to incoming fresh air, reducing the workload on the heating system and lowering overall energy consumption.
Combined with the Elite Zero’s energy recovery mode during bake cycles, businesses can benefit from:
- Reduced energy usage
- Lower operating costs
- Improved system efficiency
- Enhanced environmental performance
Additional features such as phased electric element control, airflow speed management, and low-consumption operating modes allow the booth to adapt energy use to suit varying operational requirements.
Smart Technology Built In
The Elite Zero has been engineered with advanced automation and monitoring capabilities to help businesses maximise both productivity and efficiency.
Key features include:
- Infrared-assisted curing technology
- Spray gun activity monitoring
- Automatic heating demand adjustment

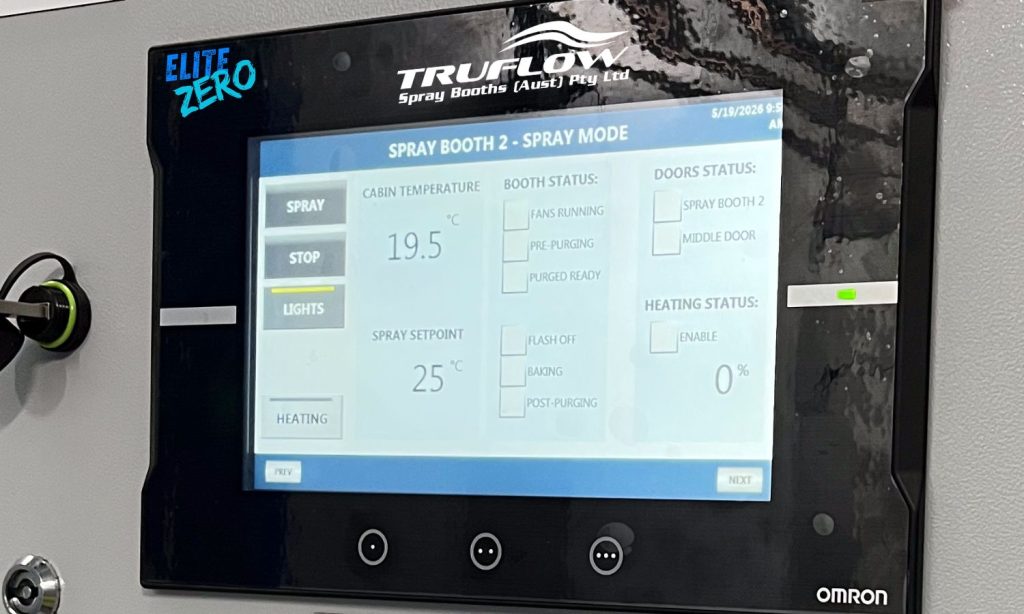

- Omron PLC control platform
- Truflow remote monitoring capability
Operators can select between Economy Mode for maximum energy savings or Traditional Mode for peak operational performance, allowing the system to be tailored to the needs of the business.
Flexible, Efficient and Future Ready
With power requirements ranging from as little as 40 amps through to 150 amps three-phase power, the Truflow Elite Zero provides exceptional flexibility for a wide range of applications.
The combination of lower operating costs, intelligent energy management, advanced curing technology, and zero direct emissions positions the Elite Zero as one of the most innovative spray booth solutions available today.
Leading the Future of Sustainable Finishing
As industries continue to move toward cleaner and more efficient manufacturing and refinishing technologies, the Truflow Elite Zero demonstrates that sustainability and performance can work hand in hand.
By combining advanced electric heating, heat recovery technology, smart controls, and premium curing performance, the Elite Zero is helping businesses reduce their environmental impact while maintaining the productivity and quality standards they rely on.
Ready to learn more?
Contact the Truflow team today to discover how the Elite Zero can help your business achieve greater efficiency, lower operating costs, and a more sustainable future.
