Fully Electric Spray Booth Technology for a Sustainable Future
Zero Direct Emissions. Reduced Energy Consumption. Premium Finishing Performance.

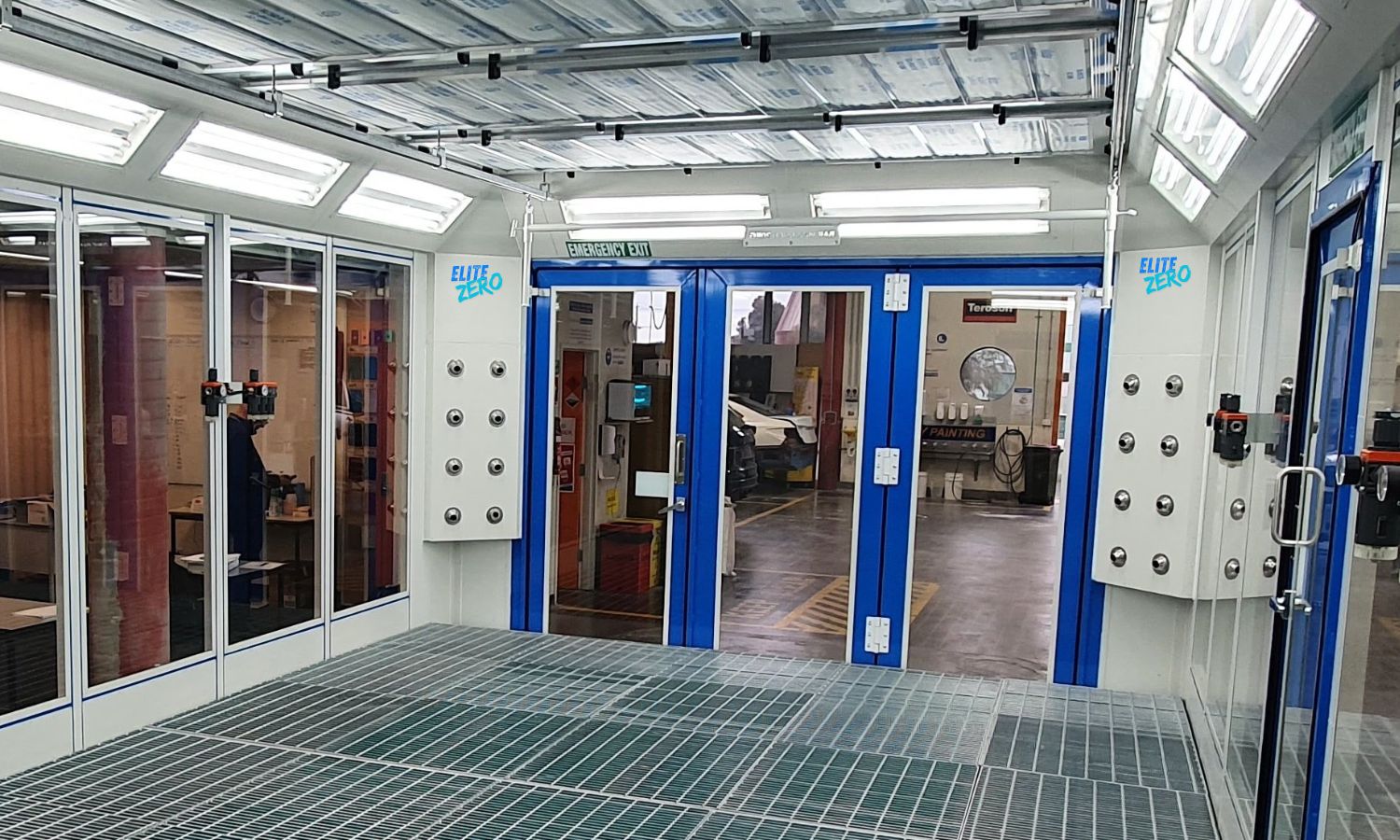

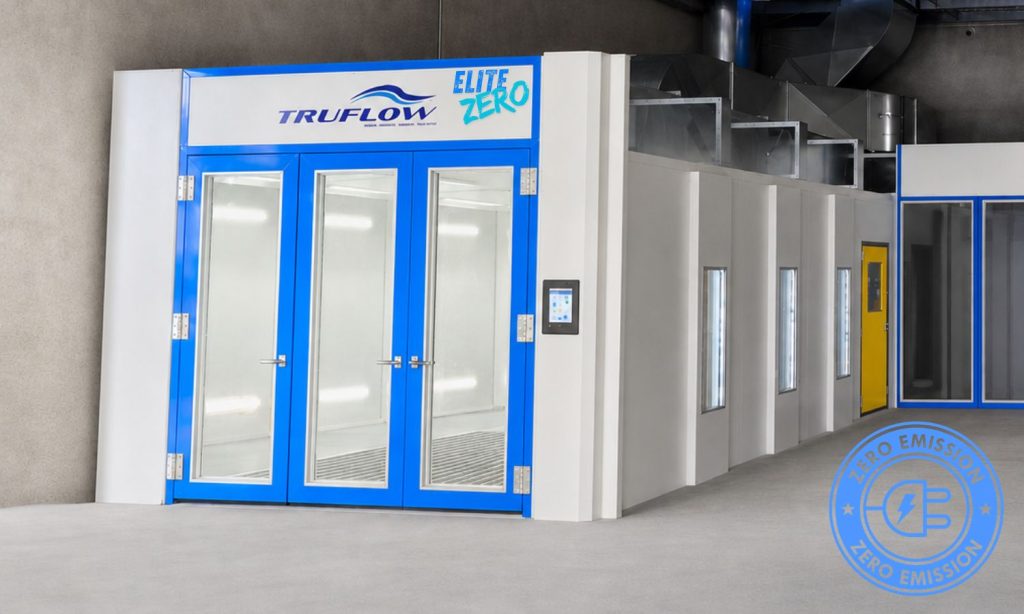

As the automotive refinishing industry continues to evolve, businesses are increasingly seeking solutions that reduce operating costs, improve efficiency, and support environmental sustainability. Leading this transformation is the Truflow Elite Zero, a fully electric full downdraft spray booth designed to deliver premium refinishing performance without the need for a traditional gas-fired burner system.
The Elite Zero represents a significant advancement in spray booth technology, achieving bake temperatures of up to 70°C through an innovative combination of multi-stage electric heating elements, intelligent airflow management, and energy recovery systems. Unlike conventional spray booths that rely on fossil fuels, the Elite Zero operates with zero direct emissions, providing a future-ready solution for environmentally conscious repair facilities.
Speak with our team today to discuss your project requirements.
Key benefits
- Fully Electric Operation
- Zero Direct Emissions
- Bake Temperatures up to 70°C
- Advanced Heat Recovery Technology
- Intelligent Energy Management
- Infrared-Assisted Curing
- Omron PLC Control Platform
- Remote Monitoring Capabilities
- Economy & Traditional Operating Modes
- Australian Designed & Manufactured
Why Choose the Elite Zero?
Advanced Electric Heating Technology
At the heart of the system is a sophisticated pre-heat and post-heat arrangement. Ambient air is pre-heated before entering the Air Handling Unit (AHU), reducing the energy required to achieve operating temperatures. A dedicated post-heating system then maintains precise temperature control throughout bake and recirculation cycles, ensuring optimal paint curing performance and consistent finish quality.
Industry-Leading
Energy Efficiency
every aspect of the Elite Zero.
Heat recovery Exchanger
The integrated heat recovery system captures energy from exhaust air and transfers it to incoming fresh air, reducing the energy required to maintain operating temperatures.
Energy Recovery Mode
During bake cycles, the booth intelligently recirculates and recovers heat to minimise unnecessary energy consumption.
Phased Heating Control
Electric heating elements are staged to match actual demand, reducing peak energy requirements and improving efficiency.
Variable Airflow Management
The Elite Zero adjusts airflow and operating performance to suit production requirements, ensuring energy is used only where and when it is needed.
Features
To further improve productivity and energy efficiency, the Elite Zero integrates infrared-assisted curing technology.
Combined with intelligent booth controls and airflow management, this helps accelerate curing processes while maintaining finish quality and reducing overall cycle times.

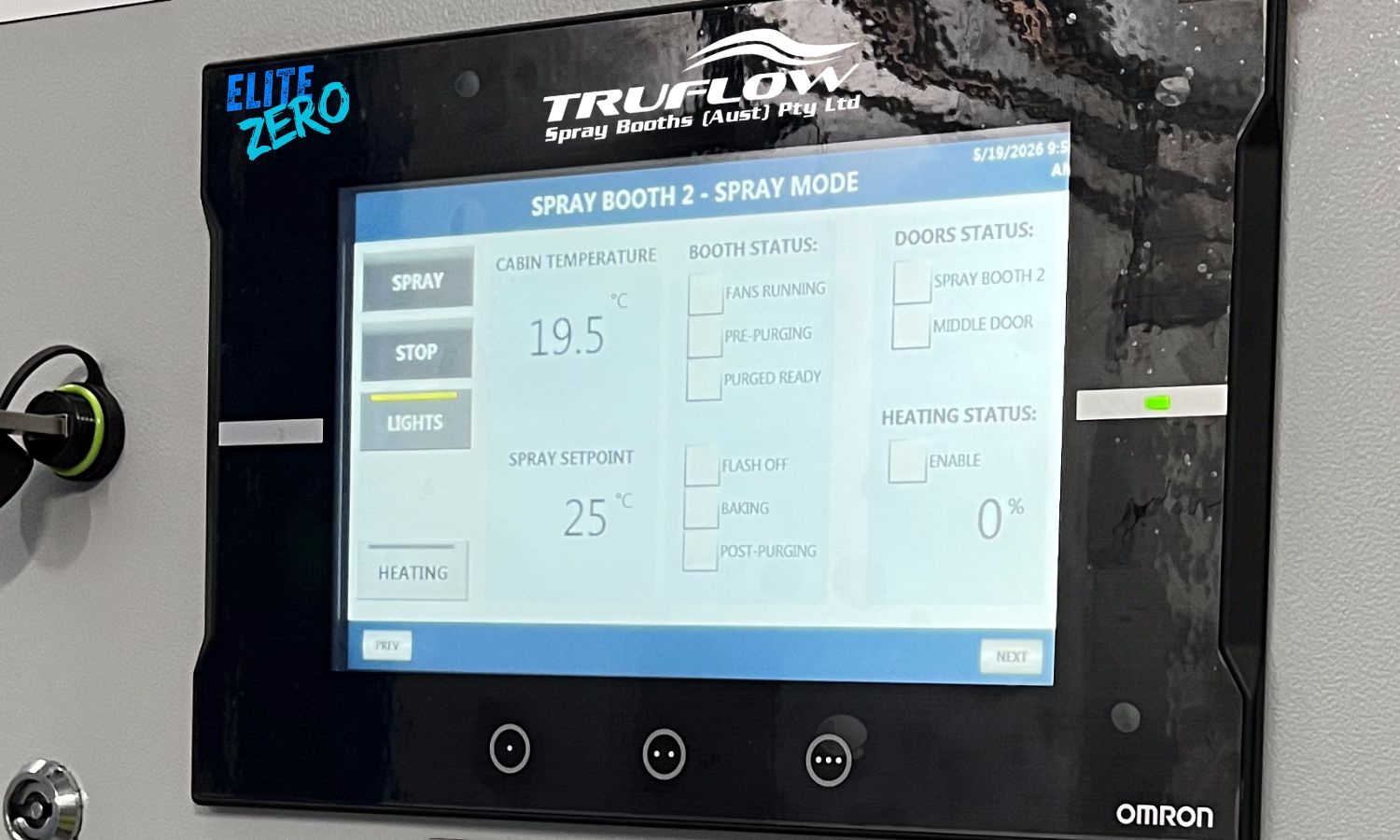

Omron PLC control Platform
Operators can easily monitor performance, adjust operating parameters, and select between operating modes to balance productivity and energy efficiency with Truflow’s remote monitoring capability.
Traditional Mode – Peak performance when needed.
Economy Mode – Optimised energy consumption while maintaining excellent curing performance.
Spray Gun Monitoring System
The spray gun monitoring system automatically adjusts heating demand based on booth activity.
With power requirements ranging from as little as 40 amps to 150 amps of three-phase power, the Truflow Elite Zero delivers exceptional flexibility, lower operating costs, and industry-leading environmental performance.
Supporting businesses across Australia who are seeking ways to:
- Reduce operating costs
- Improve sustainability outcomes
- Lower energy consumption
- Future-proof their facilities
- Improve workplace efficiency
- Meet environmental commitments
The Truflow Elite Zero has been developed to help achieve these goals while delivering the premium finishing results Truflow is known for. As the collision repair industry moves toward a more sustainable future, the Elite Zero stands as a premium solution that proves productivity, profitability, and environmental responsibility can work hand in hand.
Like all Truflow spray booths, the Elite Zero is proudly Australian designed and manufactured.
Our experienced engineering team works directly with customers to develop tailored solutions that meet operational requirements, site constraints, compliance needs, and production objectives.
When you invest in Truflow, you’re partnering with one of Australia’s leading spray booth specialists.
Designed for Modern Manufacturing
The Elite Zero is suitable for a broad range of industries requiring premium finishing environments.
Applications Include:
- Automotive Refinishing
- Collision Repair
- Commercial Vehicles
- Bus & Truck Facilities
- Aviation & Aerospace
- Industrial Manufacturing
- Defence Applications
- Cabinet Making & Joinery
- Custom Finishing Operations
- Large Scale Industrial Projects
Whatever your industry, the Elite Zero can be tailored to suit your operational requirements.
FAQ
An electric spray booth uses electric heating systems instead of traditional gas-fired burners to achieve spray and bake temperatures required for paint curing and finishing applications.
Modern electric spray booths can incorporate heat recovery systems, intelligent airflow management and advanced controls to optimise energy usage and reduce waste.
Electric spray booths are used in automotive, aviation, aerospace, commercial vehicle, industrial manufacturing, defence, marine and woodworking industries.
Electric spray booths can reduce direct emissions and support sustainability initiatives while maintaining the performance required for professional finishing operations.
Benefits may include reduced emissions, lower operating costs, improved energy management, advanced automation, and future-ready compliance with evolving environmental standards.
Ready to learn More?
Discover how the Truflow Elite Zero can help your business reduce emissions, improve efficiency, and prepare for the future of spray finishing technology. Speak with the Truflow team today.
