BENCH TYPE DRY FILTER SPRAY BOOTH

Bench Type Dry Filter Spray booth
  • Fully Compliant with Australian Standards 4114:2020
  • 100% Australian Made
  • Kit Form Self-Assembly Bench Spray Booth
  • Budget Sheet metal Spray Booth or Dust Extractor
  • Simple bolt together modular construction
  • Robust design – 1.0mm Galvanised sheetmetal construction

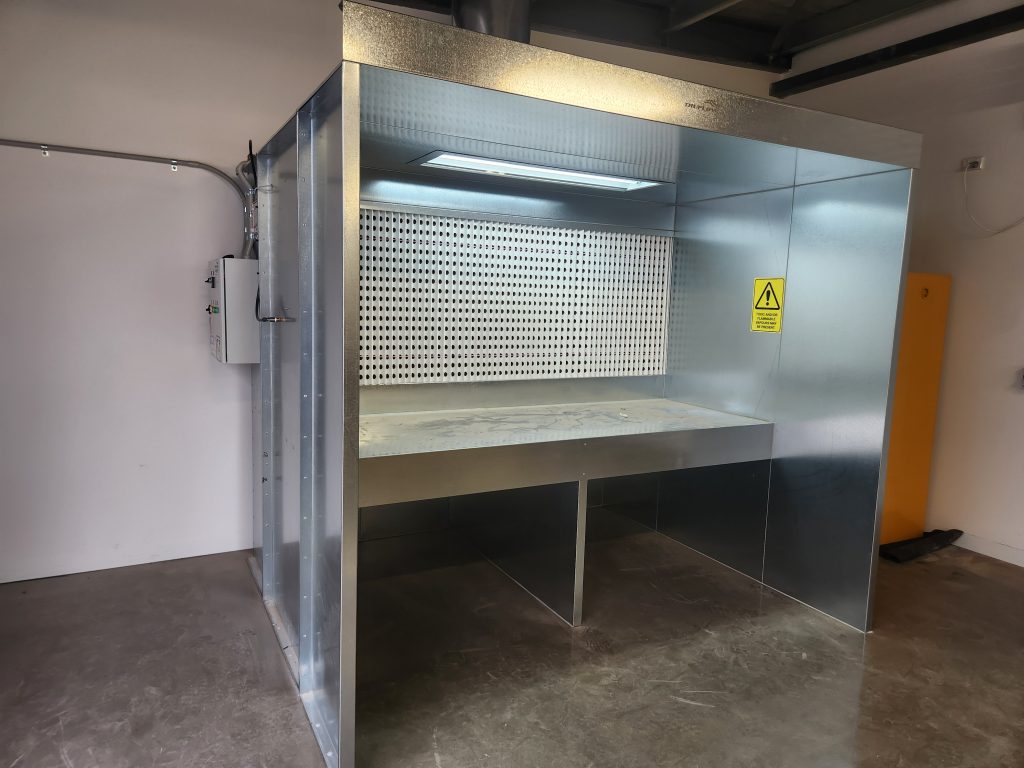

  • Three Standard widths 1220mm | 1830mm & 2440mm
  • Ideal for small parts.
  • Export Compliant to International Standards
  • Control Box Options
  • High Airflow via 3-phase protected (Ex’e’) motors
  • Corrugated cardboard exhaust filter media
  • Minimum airflow through open face spray booths @ 0.5 m/sec

Download  TRUFLOW Dry Filter Range Catalogue

WOULD YOU LIKE TO FIND OUT MORE?

SMALL PARTS SPRAY PAINTING; COMPLIANT, SIMPLE AND COST EFFECTIVE

The TRUFLOW Bench-type Spray Booth is a engineered solution to small parts spray painting. Designed to meet the needs of schools, tafes and universities as well as industry these units provide compliant fume and paint extraction.  They can be designed to suit a diverse range of components whilst containing all fume and over spray to a small area of your workshop.

Tafes / Schools and Universities

Our engineering team is experienced in designating and selecting the right spray booth for the right space and application. Booths can be designed with compressed air facilities or simply just for pressure pack painting. The hazardous area zoning delineation can be provided by our team and you can be sure that the facility is safe and meets the Australian code of practice.  We can help teachers or consultants ensure correct booth selection. Recent installation examples include Monash University, TAFE NSW, Victorian Collage of Arts, Mareeba State High School QLD just to name a few.

Industrial and Small parts

When painting small parts it is important to consider number of items to be sprayed and operational hours per day. The small parts booth will also need to be evaluated based on the type of paints being used and its level of hazardous fumes. TRUFLOW can provide a simple and cost effective solution to ensure compliance and safety.

SELECT A STANDARD MODEL

Model Selection for Bench Type Dry Booth

RECENT DEFENCE PROJECT SPRAY BOOTHS

Standard Bench

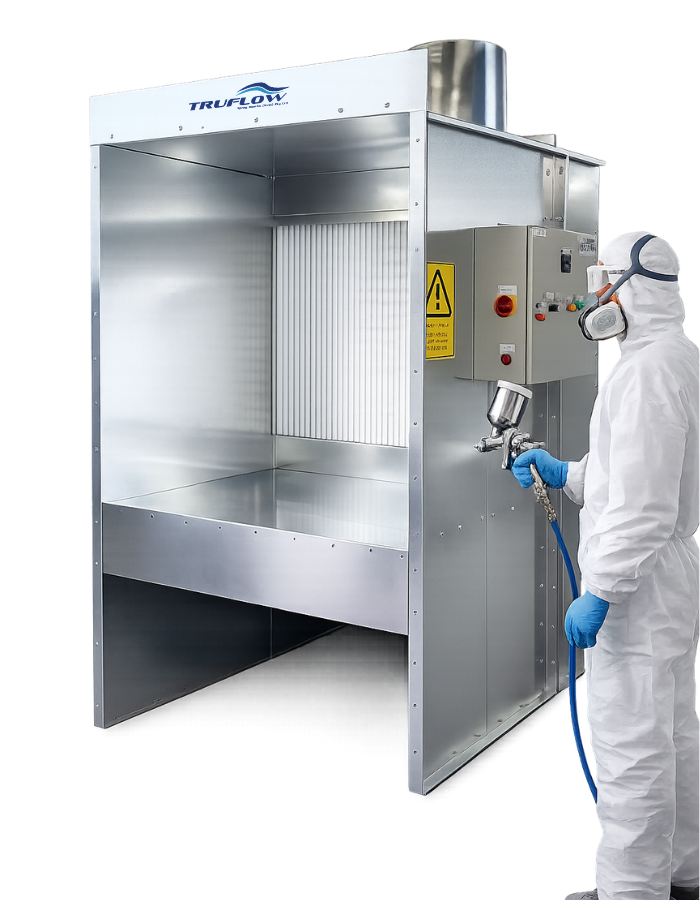

Ideal for small parts and components, this spray booth can be used with pressure pack spray cans or with a full airbrush or compressed air gravity feed spray gun. Fully compliant to Australian Standards it is fitted with Ex’e Motors and EU2 rated dry filters.

Aviation Spray Booths

With a number of options including sizes and separation options, the Bench Type Dry Filtration booth can provide up to two operators with the ability to work in a single spray booth.

Efficient Over-spray filtration

This dry filter is able to capture both we and liquid solids or particulates in the airstreem. These paint particulates are captured to a rate of 98.2% efficiency with the ability to hold 6lbs. The air velocity through the filter is .5m/s complying with AS/NZS 4114:2020
